Unitati DVD dedicate FORD - Melcu's Shop

[gheta_gabi]

Aceste unitati se potrivesc pe urmatoarele modele de FORD:
[*]Mondeo
[*]Focus
[*]Transit
[*]Kuga
[*]Galaxy
[*]C-Max
[*]Connect



This unit is the latest AllinOne Design for FORD, it has beautiful appearance with colorillumination and can good match with original car, also it has built in the most popular and strongest function: HD Digital Touch Screen, fast response speed, Subwoofer adjustable, Dual Zone, Slide Menu, 3D Rotating Screen Menu, Picture in Picture, Steering Wheel Control, Support 720P RMVB (MP5) and Virtual 8 Discs, OpenUnitAnimation, Real Clock, DVBT Tuner, GPS Navigation, Radio RDS, A2DP Bluetooth, Bluetooth PiP, IPOD Audio Input and Control, Ebook, Games, Calendar, WiFi & 3G Internet Ready, USB, SD etc.
General
-Power Supply: DC 12V (allowable range: 10.814.5)
-Max Current: 10A
-Install Size: Normal
-Package Size: 330mm*250mm*170mm
-Gross Weight: 3.5kg
-Net Weight: 3.2kg
Display
-Screen size : 7 Inch Touch Screen
-Resolution: 800 * RGB * 480
-Builtin Clock and Calendar : Yes, it has a real clock to show time
-Display Type: User/Standard/Light/Soft
-Image adjustable parameter: Brightness/Contrast/Color
-Change Background Menu : Yes, 4 Images for your Choice
-3D Rotating Screen Menu : Yes, it will show 3D images while change the screen menu
-Slide Menu on Bottom of Screen : Yes, this is the latest slide menu function
-Change the IconPosition : Yes, the position of icons can be changed at will
-One Button for Blank Screen : Yes, Shut off Display but keep Sound in the evening
-Builtin Accelerator : Yes, Very fast response
-Digital or Analog : Digital Touch Screen, Very vivid
Setup
-Key volume Setup: On/Off
-Menu Setup language: English/French/German/Italian/Turkish/Arabic/Russian/Japanese/Chinese/Spanish
-Music Navigation Setup: On/Off
-Backlight mode Setup: Day/Night
Rearview image Setup: On/Off
-Steering wheel Setup: Yes
-Button Backlight Color Setup: 12 Colors for Choice and more Color available via color combination
-Color illumination: in automode, the light will switch itself with 12 colors automatically
-Touch screen Calibration: Yes
-Open unit logo selection: 45
-Sound Setup: EQ/Loud/Treble/Bass adjustable
-Time Setup: Clock/Date/Week adjustable
GPS
-GPS Model: SiRF V
-RAM Memory: 128MB
-Memory Size: Can expand to 16GB
-Supported Maps: IGO, Sygic, Garmin…
-Free 4GB SD Card included: yes
-GPS Menu Operation Languages: English/Chinese/German/French/Spanish/Dutch/Hungarian/Czech/Danish/Norwegian/Portuguese/Italian/Finnish/Romanian/Polish/Russian/Swedish
-Voice guidance: Yes
-Support 2D/3D Map Views: Yes
-Picture in Picture function: Yes, switch in PiP 1x / PiP 2x / PiP off
-Bluetooth PiP function: yes, you can pick up or hang up coming call in GPS mode
-Dual Zone Function: Yes
GPS
-Read Media Card: Yes, can play Video/Audio/Photo/EBook from Media Card
-Builtin Games: Yes,Link and Gobang
-Builtin Clock and Calendar: Yes
-Builtin Qubla Compass: Yes
-Builtin Calculator: yes
-Ready for WiFi: yes, you can connect the ES036 WiFi Modem to access Internet
-Ready for 3G: yes, you can connect the ES166 WiFi Modem to access Internet
-Image adjustable parameter: Brightness/Contrast
Support 3G Internet: WCDMA only
-Internet Explorer: Opera,UCWeb
-Change Background image: Yes, you can change it to your images from SD card
-Slide Menu on Bottom of Screen: Yes, this is the latest slide menu function
-Change the IconPosition: Yes, the position of icons can be changed at wil
DVD
-Compatible Format: MPEG4, DVD, VCD, MP3, CD, CDR, CDRW, PICTURECD
-OSD/Audio/Subtitle Language: English/Polish/French/Spanish/Portuguese/German/Latin
-Last Position Memory : Yes, expediently watch all kinds of disc continuously
-Support Virtual 8 Disc: yes, can save totally 8 CD in your SD Card
Bluetooth
-Version: V2.0
-A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
-Builtin microphone: Yes
-External Microphone Jack: yes, on the front Panel
-Phone Book: yes, can download phone book from your mobile to this unit
-Call Record: Dialed Call,Received Call,Missed Call
-Setup: Reset/Link/Cut
DVBT
-Builtin DVBT: Yes, support MPEG2 Signal
-Menu/Audio Languages : English/German/French/Italian/Spanish/Chinese...
-Full Screen in 10 Seconds: Yes
-Digital TV Antenna Interface: Yes, on the back
Radio
-AM Frequency Range: 5221620KHz
-AM Increment: 9KHz
-FM Tuning Range: 87.5108MHz
FM Increment: 0.05MHz
-RDS: Yes
-Preset Stations: 30 (FM 3*6, AM 2*6)
USB
-Position: On the Front Panel
-Capacity: 16GB
-Play MP5 Video: yes , support 720P RMVB file
-Select Title with small Keypad: Yes
-Touch Title to play directly: yes
SD
-Position : On the front Panel
-Capacity : 16GB
-Play MP5 Video: yes , support 720P RMVB file
-Select Title with small Keypad: Yes
-Touch Title to play directly: yes
iPod/iPhone
-Compatible with iPhone 4: yes
-Charge iPhone: yes
-Show Playlist: yes
-Control iPhone from DVD player: yes
-Support iPhone vidoe input: no ,but you can buy one ES128 video cable to support this function
Input
-AUX Video In: One
-Camera Video In : One
-iPod In: One
-AUX Audio In: R/L
-TV Antenna Input: One
-Radio Antenna Input: One
-GPS Antenna Input: One
Output
-Video Out: Two
-Audio Out: FR/FL/RR/RL
-Surround Stereo Output: 4 x 50w
-Subwoofer Out: One
Control
-Remote Control: Yes
-Steering Wheel Control: Yes
-Back Sight Control: Yes
-Hand brake Control: Yes
-Auto Mute Control: Yes

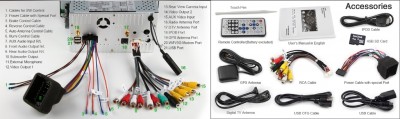

Accessories
-User's Manual in English: One
-Remote Controller (Battery excluded): One
-Power Cable with special port : One
-RCA Cable: One
-USB Cable: One
-USB OTG Cable: One
-GPS Antenna: One
-Free 4GB SD Card as gift: One
-iPod Cable: One
-Digital TV Antenna: One
-Stylus: One

Fişiere ataşate

7

6

5

4

3

2

1

[forbidden27]

1. Garantie....???
2. Daca apar probleme in garantie, cum se solutioneaza...???
3. Ce implica "precomanda", bani in avans, timp de livrare...???
4. Asigurati montajul...???

Un vanzator serios ar trebui sa specifice mai intai cele de mai sus si apoi lunga compunere cu ce stie scula sa faca.

[DGAlexandru]

1. Garantie 1 an
2. Daca se strica, se trimite inapoi la producator in vederea repararii/inlocuirii unitatii
3. Inseamna ca faceti comanda pe link-ul pus in anunt, iar in 10 zile lucratoare veti intra in posesia unitatii (daca accesati link-ul, gaseati acest detaliu)
4. Nu se asigura montajul. El se poate face oriunde.

Nu cred ca v-am tras de maneca sa-mi cumparati mie produsul. Daca aveti dubii in legatura cu seriozitatea mea, va invit sa achizitionati un produs asemanator din alta parte (la un pret cu cel putin 300 lei mai mare). Daca aveti ceva de reprosat, o faceti pe PM sau telefonic, nu-mi poluati topicul.

Ultima oară modificat de DGAlexandru pe 01 Ian 2015, 22:20, modificat 1 dată în total.
Motiv: Nu mai citati mesajul anterior. Raspundeti in topic apasand pe butonul "Raspunde", nu pe "Citeaza".

[sanderoalex]

recunoaște comenzile de la volan?

[Smiley]

ce avantaje ofera o comanda efectuata prin tine fata de una efectuata direct la producator ( http://www.erisin.com/erisin-es1131f-7- ... _p466.html ) ?

[gheta_gabi]

Pret unitate - 215$
Shipping - 40$
Comision plata prin WU - aproximativ 30$
Taxe vamale - undeva in jusr de 35-40$

Total = aproximaiv 1200 lei

Avantaje client:

1 - nu mai alearga pe la banci sa schimbe lei in USD si nu mai pierde la paritate.
2 - nu are nici o bataie de cap, pur si simplu plateste si primeste unitatea
3 - in caz de defectiune, nu se complica cu trimisul unitatii inapoi in China ci eu fac asta, nu isi pierde timpul cu contactatul producatorului si explicatiile aferente, ci eu fac asta, etc.

[gheta_gabi]

[sanderoalex]

pai atunci cum e dedicata ford?

[Smiley]

are dimensiunile potrivite pentru unele modele ford. in carcasa sunt de fapt aceleasi componente ca si pentru alte modele, dar care au "fata" altfel (rotunjita, cu colturi drepte/rotunde, cu diverse indentatii specifice unui model etc).


ca si idee, mie mi se pare o tampenie sa dai 1400 lei avans pentru o unitate audio unei persoane fizice, care are doar un numar de telefon si un "shop" gratuit.
mai bine mai adaugi 300 lei, cum se spunea mai sus, si cumperi de la o firma la care garantia sa insemne totusi ceva. sau daca vrei sa minimizezi costurile, atunci direct la producator (am pus link mai sus catre el).

[gheta_gabi]

Baieti, v-am bagat mana in buzunar? Daca nu va convine oferta, va puteti lua ce vreti de unde vreti.

@Smiley: Aici nu e discutie libera, ci o vanzare. Daca nu ai de gand sa cumperui, te rog sa deschizi un topic in aria potrivita pt a arata ce bine cunosti internetul.

Urmatorul offtopic va fi cu report.
Va rog sa va tineti opiniile personale pt voi, nu ma intereseaza.

PS: Scopul meu este sa-mi fac clienti, nu sa vand o unitate si gata. Referitor la garantie, daca nu ajut cel ce a cumparat unitatea de la mine, ce credibilitate voi mai avea in viitor pe forumul asta? Incercati sa ganditi un pic inainte de a posta. Numai moralisti pe aici.

[BogdanFSB]

Va rog sa postati numai la subiect. Nu e nevoie sa comentam inutil.

[andrei0241]

Atata timp cat se discuta despre obiectul vandut, de ce deranjeaza?
Cat costa decodorul CANBUS ptr a putea folosi comenzile de langa volan pe o Fiesta 2007?
Cat costa transportul?
Cat dureaza solutionarea unei probleme aparute pe garantie, daca unitatea se trimite in China si cine plateste transportul, clientul sau compania care a vandut produsul?

[gheta_gabi]

@Bogdan, poate faci putina curatenie pe aici, daca tot ai reperat offtopicurile.

@Andrei - Eu vand doar navigatia, nu si adaptoare CANBUS. unitati care au acest decodor inclus se invart in jurul pretului de 1800 - 2200 lei. Cu o cautare pe Google, vei gasi ceea ce cauti. In pretul navigatiei este inclus si transportul. Daca survine vreo problema, cheltuiala pentru shipping-ul unitatii va fi suportat de mine, nu de catre cumparator. Avand in vedere ca unitatea trebuie sa ajunga in China si inapoi, solutionarea problemei va dura in jur de o luna.

Inca o data, cui nu-i convin conditiile, este invitat sa cumpere din alta parte. Multumesc.

[andrei0241]

Multumim de invitatie, o sa o urmam!

[Smiley]

[gheta_gabi]

Baiatul ala m-a sunat o data, n-am putut raspunde si a lasat imediat feedback negativ, desi s-a rezolvat ulterior problema.
De restul feddback-urilor nu zici nimic?

Mai astept niste noroi cu care sa arunci in mine.
Incep sa cred ca ai o problema personala cu mine, desi nu ne cunoastem...
